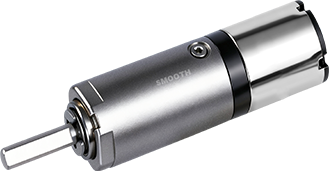

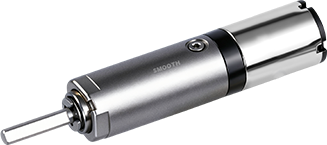

Metal Micro Drive System--Φ28MM

SMSMD028028

Diameter（mm）:28

Length（mm）:21.3～46.8

Rated Voltage（VDC）:24.0

Output Power（W）:0.5～4.5

Max Rated Torque （gf.cm):33000/40000

Max Instant Torque（gf.cm）:100000/120000

Customized consultation

Recommended Models

Drawings

Popular Products Applications

Recommended Models

Model	Typical Application Parameters								Max Rated Torque of Gear Box	Max Instant Torque of Gear Box	Gear Ratio	Gear Box Length
	Rated	At No Load		At Rated Load			Overall Length
	Voltage	Speed	Current	Speed	Current	Torque	Overall Length
	VDC	rpm	mA(MAX)	rpm	mA(MAX)	gf.cm	mN.m	mm	gf.cm	gf.cm		mm
SMSMD028028-4	24.0	1850	160	1500	400	205	20.1	58.8	40000	120000	4	21.3
SMSMD028028-6	24.0	1233	160	1000	400	307	30.1	58.8	33000	100000	6	21.3
SMSMD028028-16	24.0	472	150	413	400	655	64.3	67.3	40000	120000	16	29.8
SMSMD028028-24	24.0	312	150	276	400	983	96.4	67.3	40000	120000	24	29.8
SMSMD028028-36	24.0	211	150	181	400	1475	144.6	67.3	33000	100000	36	29.8
SMSMD028028-64	24.0	119	150	94	350	1728	169.5	75.8	40000	120000	64	38.3
SMSMD028028-96	24.0	79	150	63	350	2592	254.2	75.8	40000	120000	96	38.3
SMSMD028028-144	24.0	54	150	42	350	3888	381.3	75.8	40000	120000	144	38.3
SMSMD028028-216	24.0	35	150	28	350	5838	571.9	75.8	33000	100000	216	38.3
SMSMD028028-256	24.0	30	150	23	350	5183	508.4	84.3	40000	120000	256	46.8
SMSMD028028-384	24.0	19	150	16	350	7776	762.6	84.3	40000	120000	384	46.8
SMSMD028028-576	24.0	13	150	10	350	11664	1143.9	84.3	40000	120000	576	46.8
SMSMD028028-864	24.0	9	150	7	350	17496	1715.8	84.3	40000	120000	864	46.8
SMSMD028028-1296	24.0	6	150	5	350	26244	2573.7	84.3	33000	100000	1296	46.8

The specifications above are for reference only and can be adjusted according to customer requirements regarding product appearance and technical parameters.

Drawings
